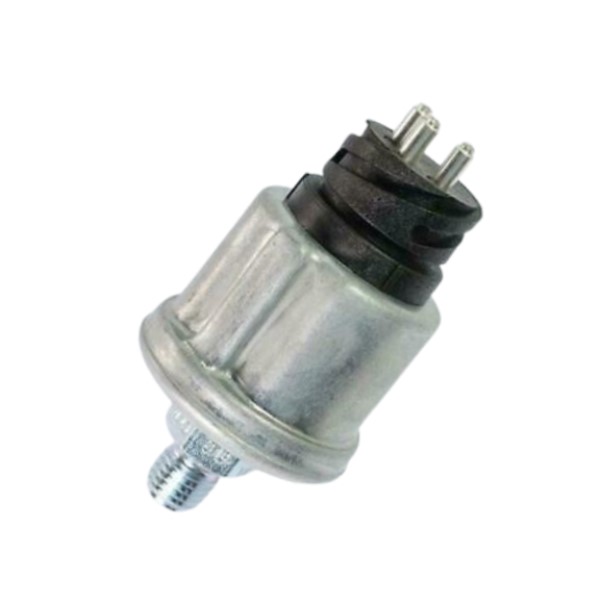

Picture of 360-081-063-001C - Pressure Sender Switch - 0 to 10 Bar - Warning Contact 5.2 Bar - M12X1.5

360-081-063-001C - Pressure Sender Switch - 0 to 10 Bar - Warning Contact 5.2 Bar - M12X1.5

Manufacturer: Continental
Pressure Sender Switch - 0 to 10 Bar - With Warning Contact Switch 5.2 Bar - Thread M12X1.5
SKU: 360-081-063-001C
Manufacturer part number: 360-081-063-001C
  • SKU : 360-081-063-001C
  • Brand : Continental
  • Product Portfolio : Switches & Senders
  • Product Family : Senders
  • Product Group : Pressure Senders
  • Thread : M12 X 1.5
  • Pressure Range : 0 Bar to 10 Bar
  • Sender Resistance Range : 10 Ohm to 184 Ohm
  • Sensor Signal : 2 Pole Insulated Return
  • Warning Contact : 5.20 Bar ± 0.30 Bar
  • Warning Contact Switch Capacity : Maximum 5 Watt Non-inductive
  • Warning Contact Features : Closes With Falling Pressure
  • Pressure Sender Connector : Bosch Push-on Connector 2.8 x 0.8mm
  • Warning Contact Connector : Bosch Push-On Connector 2.8 x 0.8mm
  • Pressure Medium : Oil - Fuel - Air
  • Operating temperature: : -25 °C to +100 °C
  • Length Thread + Nut (L1) : 20.5mm
  • Thread Length (L2) : 12mm
  • Torque : 40 Nm
  • Maximum Pressure : 30 Bar during 2 seconds
  • Operating Voltage : 6 - 24 V DC
  • Weight : 0.12kg
  • Warranty : 12 Months
